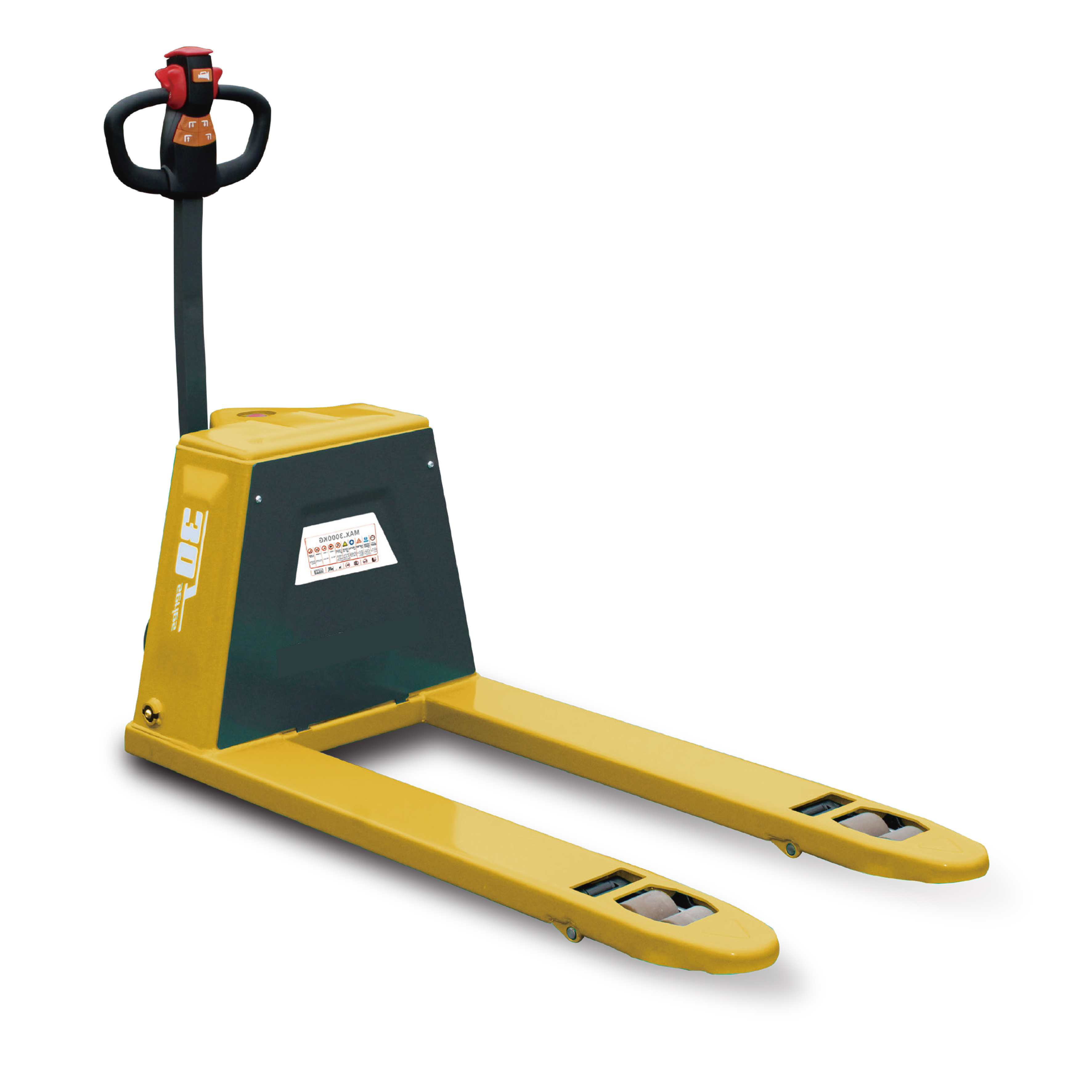

3 Ton Economic Pallet Carrier

·Drive Wheel Diameter 160mm: Provides strong passing ability. Motor Power 1000W: Delivers excellent climbing power. High Brake Torque: Enhances overall vehicle safety.
·Integrated Controller: Housed within the enclosure for high safety protection rating. Easy Installation, Inspection & Maintenance: Suitable for various environments. Vector Controller with Pump Control: Features low lifting current, low noise operation, and extends battery life.
·Lead-Acid Battery 48V 25Ah: Ensures long endurance. National Patent: Equipped with a side-pull battery replacement mechanism for rapid battery swaps in approximately 10 seconds.
·Dedicated Full-Electric Integrated Handle: Offers comprehensive functions, convenient operation, and low failure rate.
·Ø40mm Oil Cylinder Piston: Provides strong lifting force and resists deformation/damage. Shock-Absorbing Block: Integrated at the handle end to prevent impact damage and extend handle lifespan. Pump Station Power 0.8KW: Delivers robust power.

Quantity:
Availability:





Inquire Add to Basket

Model:
CBD30-E1M1
Brand:
Madierda

Product Description

// Product Parameters

Drive mode		Electric
Operating mode		Walk
Load capacity	Q(kg)	3000
Wheel base	Y(mm)	1307	1357
N.W	kg	205	215
Bridge load:Full load/empty load	kg	1186/2019 167/38	1190/2525 173/42
Drive wheel size	ФX*W(mm)	Ф210x70
Bearing wheel size	ФX*W(mm)	Ф80x80
Lift height	h3(mm)	110
Overall length	L1(mm)	1650	1700
Carrier body length	L2(mm)	500
Overall width	b1(mm)	560	685
Fork size	s/e/l(mm)	60/170/1150	60/170/1200
Right angle stacking channel width pallet 1000x1200(1200 Place across the forks)	Ast(mm)	1898	1950
Right angle stacking channel width pallet 800x1200(1200 Place along the forks)	Ast(mm)	1867	1919
Turning tadius	Wa(mm)	1460	1508
Walking speed: Full load/empty load	km/h	4.0/4.5
hoisting speed: Full load/empty load	mm/s	20/25
Descent speed:Full load/empty load	mm/s	56/46
Maximum gradeability: Full load/empty load	%	6/20
Brake type		Electromagnetic
Drive motor power	KW	1.2
Drive motor type		AC
Lifting motor power	KW	0.8
Lifting motor type		DC
Battery	V/Ah	48V40Ah
Noise	db(A)	＜70
