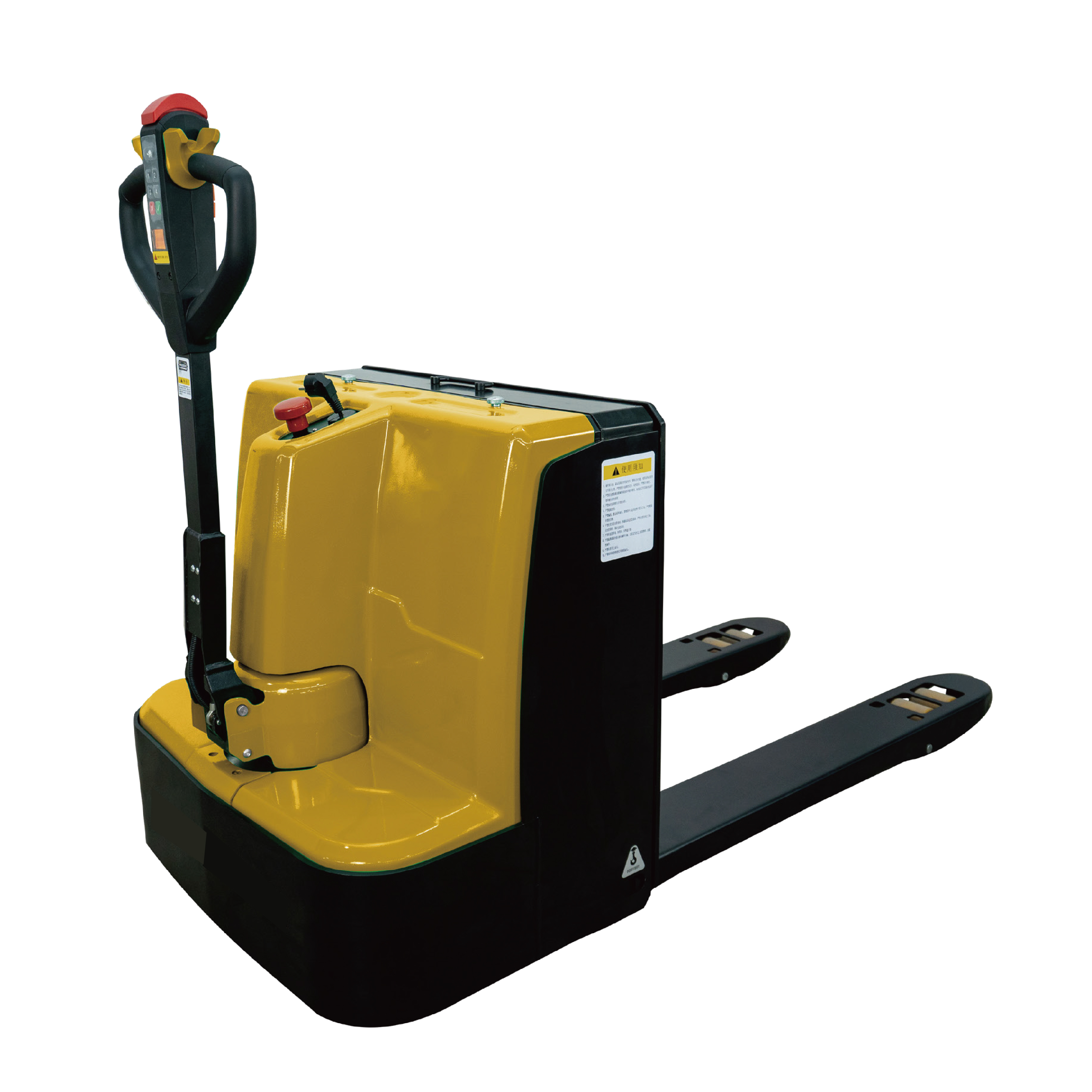

CBD30-E1PL
Madierda
// Product Parameters
Power type | Electric | |
Drive mode | Stand up | |
Load capacity | Q(kg) | 3000 |
Load centre distance | C(mm) | 600 |
Lift height | h3(mm) | 195 |
Fork size | s/e/l(mm) | 55 /160 /1150 |
Fork width | b5(mm) | 550/685 |
Turning tadius | Wa(mm) | 1538 |
Wheel base | Y(mm) | 1405 |
Drive wheel size | mm | Ф210x70 |
Fork wheel size | mm | Ф80x70 |
Balance wheel size | mm | Ф115x50 |
Balance wheelbase | b10(mm) | 534 |
Fork wheelbase | b11(mm) | 390/525 |
Overall length | I1 (mm) | 1725 |
Overall width | b1(mm) | 790 |
Battery | V/Ah | 48V50Ah |
Battery weight | kg | 50 |
Drive motor power | kw | 1 |
Lifting motor power | kw | 0.85 |
N.W.(with battery) | kg | 380 |
Steering method | Electronic steering |
