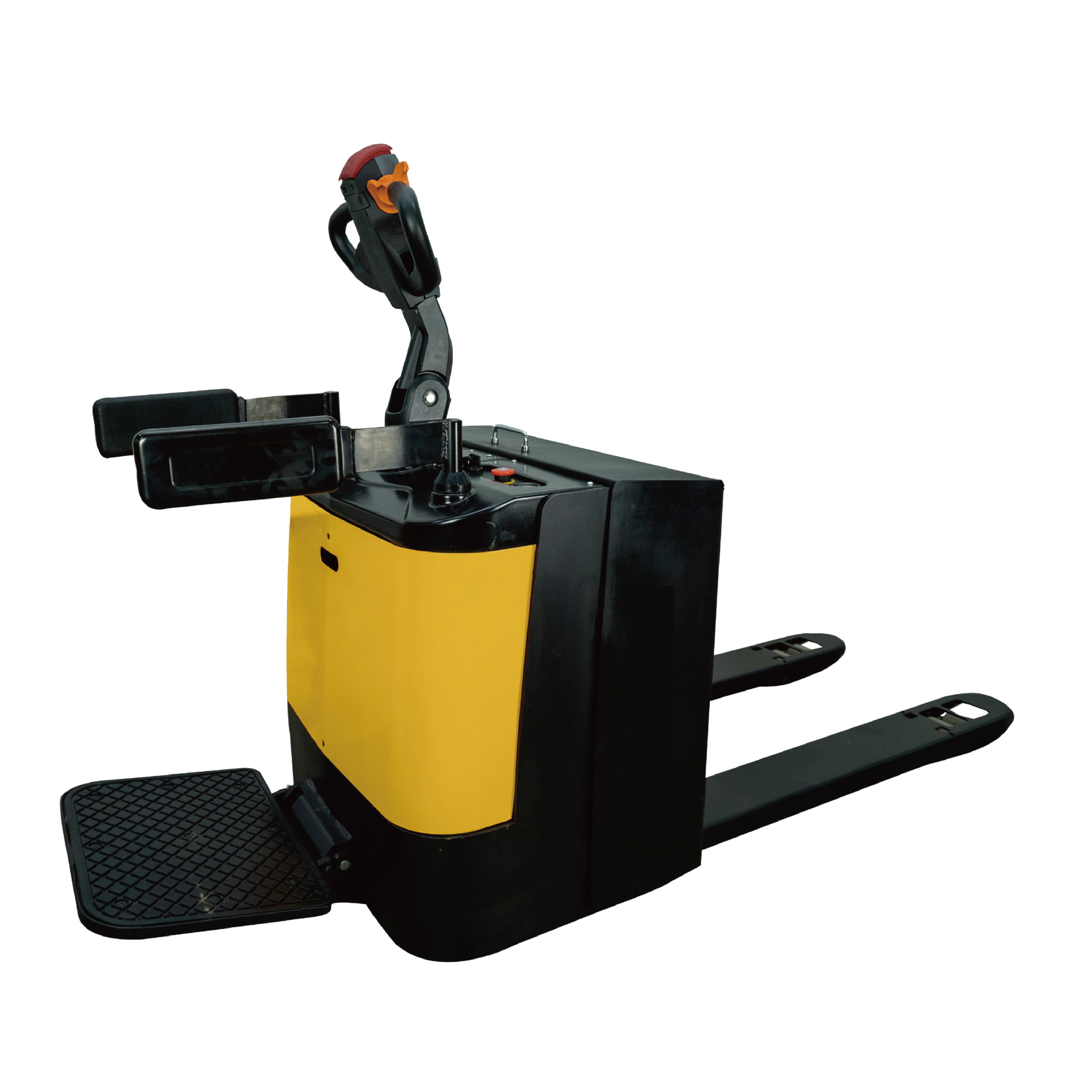

Electric Stand On Pallet Truck

·High-quality hydraulic station, low noise, low vibration, strong sealing, automatic adjustment of descent speed, ensuring smooth and reliable lifting and lowering speeds;
·Precise electronic limit switches, accurately controlling the maximum lifting height to prevent damage to the motor.
·Emergency reverse driving function;
·Emergency power-off switch as standard equipment;
·Ergonomically designed control handle, convenient for both left and right-handed operation, with all operational functions easily accessible via simple buttons on the handle, enhancing driving comfort.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • CBD20-E2PL

  • Madierda

   // Product Parameters

Power type


Electric

Drive mode


Stand on

Load capacity

Q(kg)

2000

Load centre distance

C(mm)

600

Lift height

h3(mm)

200

Fork size

s/e/l(mm)

60/160/1150

Fork width

b5(mm)

550/685

Turning tadius

Wa(mm)

1636(folding)/2045

Wheel base

Y(mm)

1354

Front wheel size

mm

Ф250x75

Rear wheel size

mm

Ф80x80

Additional wheel size

mm

Ф115x50

Front wheelbase

b10(mm)

590

Rear wheelbase

b11(mm)

391/526

Min channel width 1000x1200

Ast(mm)

2394(folding)/2803

Min channel width 800x1200

Ast(mm)

2307((folding)/2716

Walking speed: Full load/empty load

km/h

4.3/4.7

Hoisting speed: Full load/empty load

mm/s

35/38

Maximum gradeability: Full load/empty load

%

6/10

Overall length

I1 (mm)

1825((folding)/2234

Overall width

b1(mm)

808

Brake type


Electromagnetic

Battery

V/Ah

48V/50Ah

Drive motor power

kw

0.85

Lifting motor power

kw

0.8

N.W.

kg

500

Steering method


Mechanical steering
