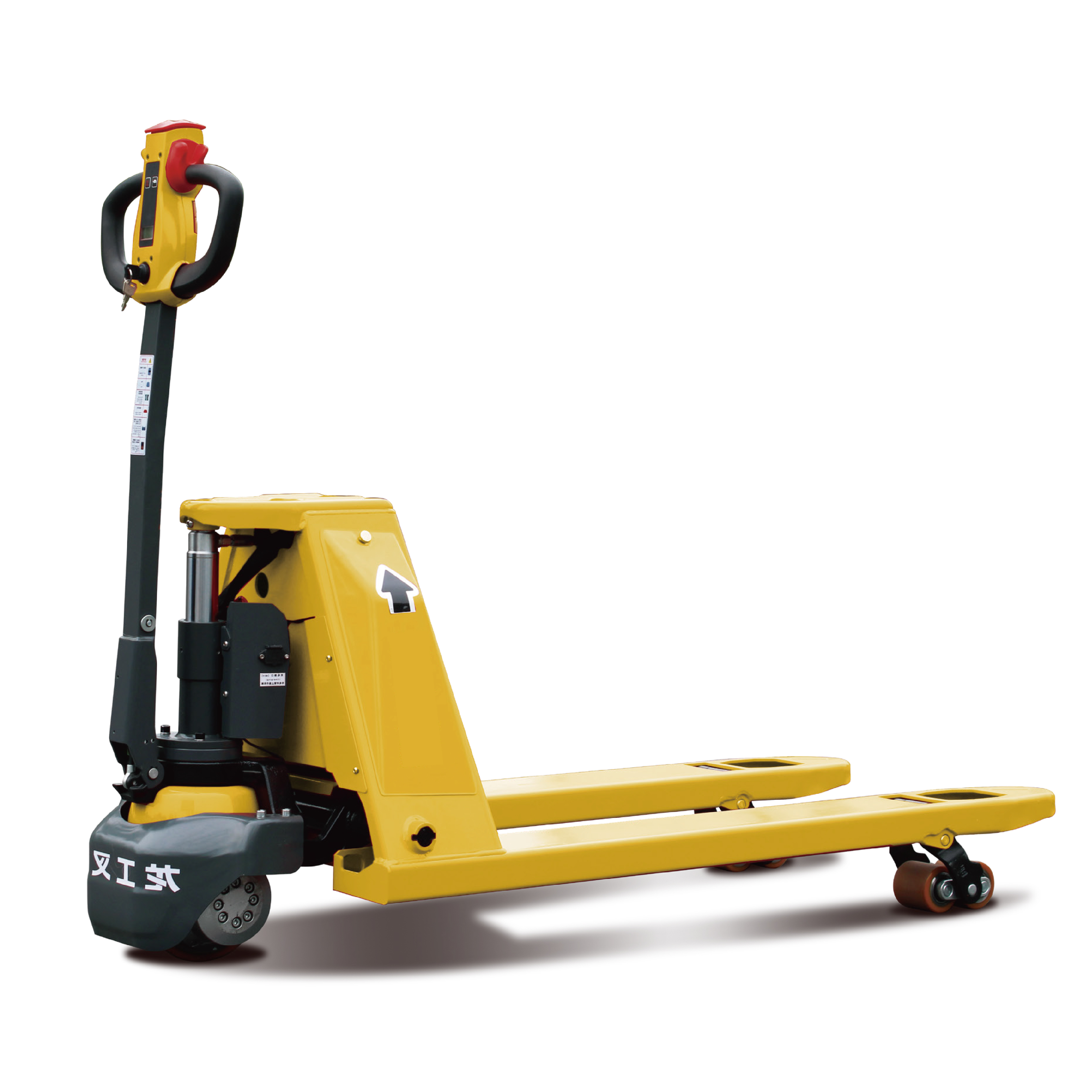

CBD30-E1M1L
Madierda
// Product Parameters
Power type | Electric | ||
Operating mode | Walk | ||
Load capacity | Q(t) | 3 | |
Wheel base | y(mm ) | 1280 | 1350 |
N.W. | kg | 179 | 188 |
Drive wheel size | Фxw(mm) | Ф210x70 | |
Bearing wheel size | фxw(mm) | Ф80x80 | |
Lift height | h3(mm ) | 100 | |
Minimum height of the forks | h13(mm ) | ≤83 | |
Overall length | l1(mm ) | 1626 | 1696 |
Overall width | b1(mm ) | 560 | 685 |
Fork size | s/e/l(mm ) | 56/170/1140 | 56/170/1210 |
Fork outer width | b5(mm) | 560 | 685 |
Aisle width:800x1200 Place along the forks | Ast(mm) | 2090 | 2120 |
Turning tadius | Wa(mm) | 1480 | 1560 |
Walking speed: Full load/empty load | (km /h) | 4/4.5 | |
Hoisting speed: Full load/empty load | (mm/s) | 21/25 | |
Descent speed: Full load/empty load | (mm/s) | 50/40 | |
Maximum gradeability: Full load/empty load | (%) | 6/25 | |
Brake type | electromagnetic | ||
Drive motor power | (kw ) | 1.2 | |
Lifting motor power | (kw ) | 0.8 | |
Battery | (V/Ah ) | 48V/20Ah Lithium | |
Battery weight | kg | 12 | |
Drive control type | Vector velocity control | ||
Noise | dB (A) | <70 | |
