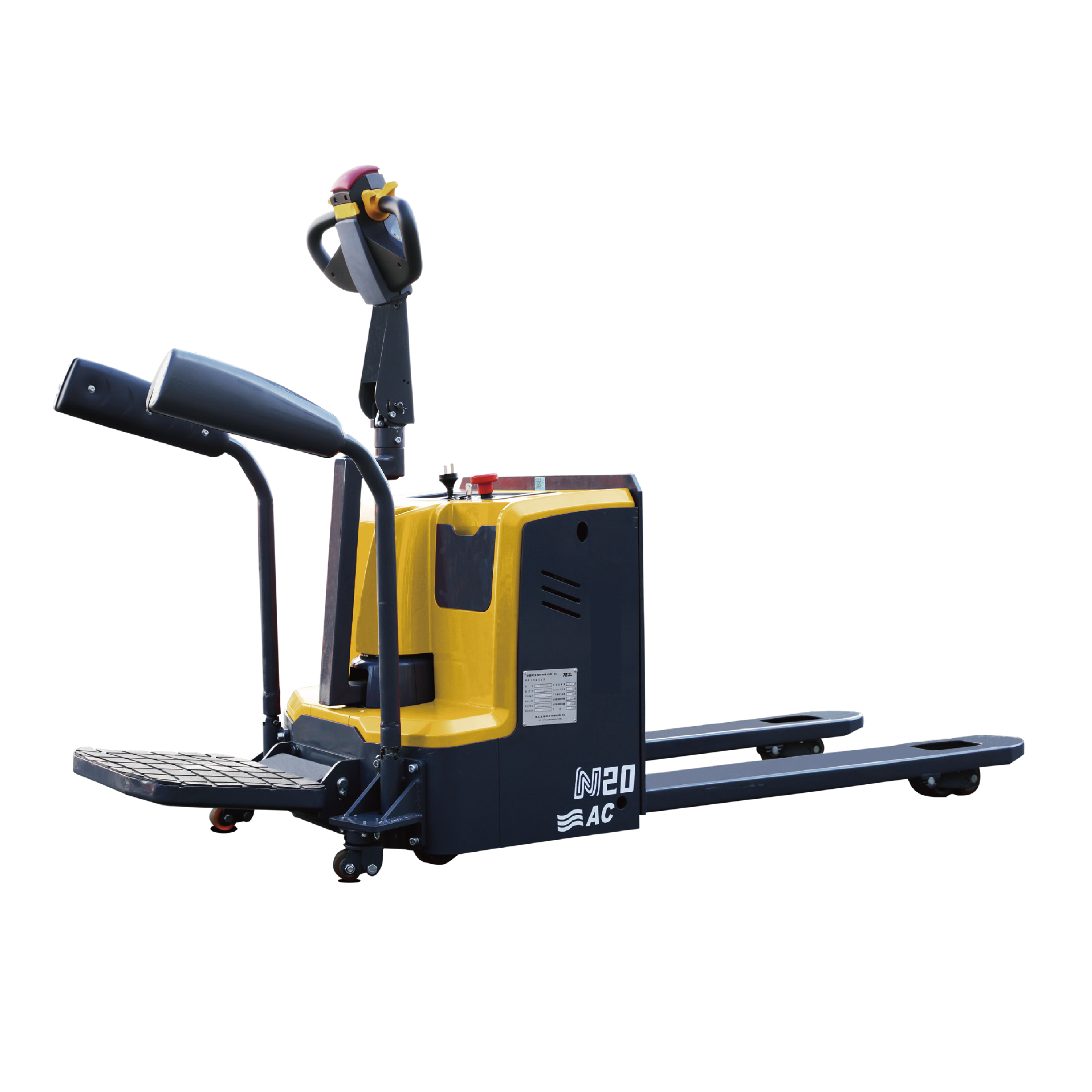

CBD20-N2CJ
Madierda
// Product Parameters
Power type | Electric | |
Operating mode | Stand on | |
Load capacity | Q(t) | 2 |
Wheel base | y(mm ) | 1324 |
N.W. (with battery) | kg | 370 |
Wheel load front/rear: empty load | kg | 80/290 |
Wheel load front/rear: full load | kg | 1520/890 |
Drive wheel size | Фxw(mm) | Ф210x70 |
Bearing wheel size | фxw(mm) | Ф80x70 |
Balance wheel size | фxw(mm ) | Ф100x40 |
Lift height | h3(mm ) | 200 |
Minimum height of the forks | h13(mm ) | 85 |
Overall length | l1(mm ) | 2178/1810 |
Overall width | b1/ b2(mm ) | 700 |
Fork size | s/e/l(mm ) | 50/160/1150 |
Fork outer width | b5(mm) | 540/680 |
Aisle width:1000x1200 Pallet (1200Place across the forks) | Ast(mm) | 2380 |
Aisle width:800x1200pallet (1200Place along the forks) | Ast(mm) | 2475 |
Turning tadius | Wa(mm) | 1610 |
Walking speed: Full load/empty load | (km /h) | 4.2/4.5 |
Hoisting speed: Full load/empty load | (mm/s) | 36/44 |
Descent speed: Full load/empty load | (mm/s) | 47/36 |
Maximum gradeability: Full load/empty load | (%) | 6/10 |
Brake type | electromagnetic | |
Drive motor power | (kw ) | 0.75 |
Lifting motor power | (kw ) | 0.8 |
Battery | (V/Ah ) | 2x12V/100Ah |
Battery weight (±5%) | kg | 54 |
Drive control type | AC speed control | |
Noise | dB (A) | ≤70 |
Diversionary mode | Mechanical steering |
