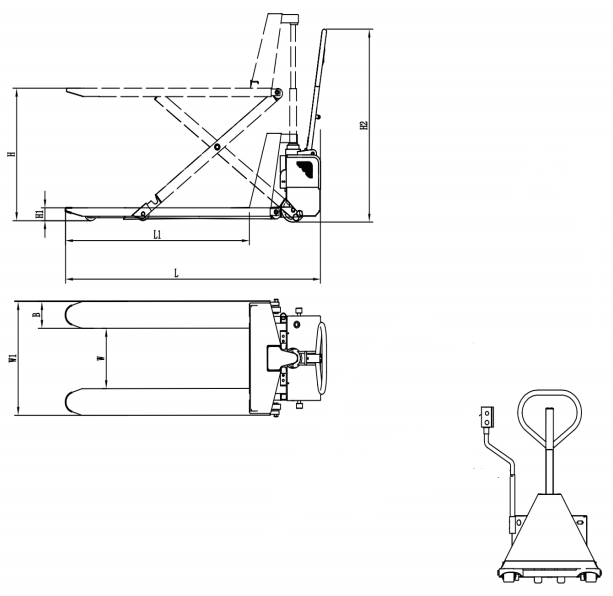

// Product Parameters
Load capacity | Kg | 1000 | 1500 |
Minimum height of the forks | H1(mm) | 85 | |
Lift height | H(mm) | 800 | |
Forks outer width | W(mm) | 540/680 | |
Fork size | L1(mm) | 1150*160*50 | |
Overall length | L(mm) | 1750 | |
Overall height | H2(mm) | 1280 | |
Bearing wheel size | mm | Ф80*70 | |
Steering wheel size | mm | Ф150*50 | |
Turning tadius | mm | 1540 | |
Power | Kw | 1.2 | |
Wheel material | PU/Nylon | ||
Battery | V/AH | 12/65 | |
N.W. | Kg | 142/145 | 145/148 |
G.W.(2pc/pallet) | Kg | 288/294 | 294/300 |
Package size | a*b*h(mm) | 2400*550*1300 | 2400*700*1300 |
