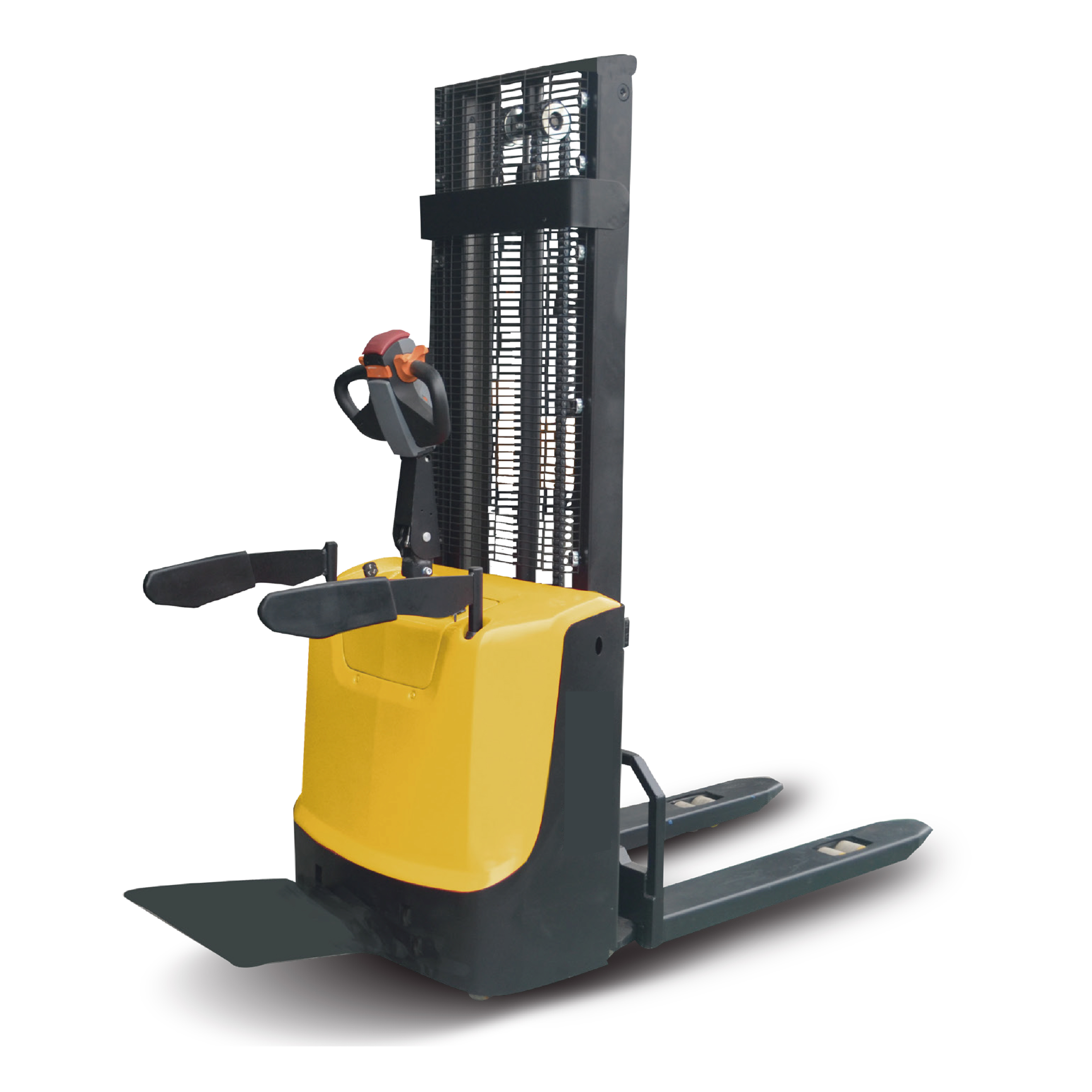

CDD15-E2C1
Madierda
// Product Parameters
Model | CDD15-E2C1-1.6M | CDD15-E2C1-2M | CDD15-E2C1-2.5M | CDD15-E2C1-3M | CDD15-E2C1-3.5M | |
Power type | Electric | |||||
Operating mode | Walk | |||||
Load capacity | Q(t) | 1.5 | ||||
Wheel base | y(mm) | 1200 | ||||
N.W.(with battery) | kg | 640 | ||||
Drive wheel size | Фxw(mm) | Ф210x70 | ||||
Bearing wheel size | фxw(mm) | Ф80x70 | ||||
Balance wheel size | фxw(mm) | Ф100x40 | ||||
Minimum door frame height | h1(mm) | 2006 | 1486 | 1736 | 1986 | 2236 |
Lift height | h3(mm) | 1600 | 2000 | 2500 | 3000 | 3500 |
Maximum door frame height | h4(mm) | 2006 | 2443 | 2943 | 3443 | 3943 |
Minimum height of the forks | h13(mm ) | 86 | ||||
Overall length | l1(mm ) | 1775 | ||||
Stacker body length | I2(mm ) | 625 | ||||
Overall width | b1/b2(mm ) | 820 | ||||
Fork size | s/e/l(mm ) | 60/160/1150 | ||||
Fork outer width | b5(mm) | 570/695 | ||||
Aisle width:1000x1200 (1200 Place across the forks) | 2250 | |||||
Aisle width:1000x1200 (1200 Place along the forks) | Ast(mm) | 2190 | ||||
Turning tadius | Wa(mm) | 1410 | ||||
Walking speed: Full load/empty load | (km /h) | 4.2/4.5 | ||||
Hoisting speed: Full load/empty load | (mm/s) | 87/143 | ||||
Descent speed: Full load/empty load | (mm/s) | 100/90 | ||||
Maximum gradeability: Full load/empty load | (%) | 3/10 | ||||
Brake type | electromagnetic | |||||
Drive motor power | (kw ) | 0.75 | ||||
Lifting motor power | (kw ) | 2.2 | ||||
Battery | (V/Ah ) | 2X12/120 | ||||
Battery weight | kg | 2x34 | ||||
Drive control type | DC speed control | |||||
Noise | dB (A) | ≤70 | ||||
Steering type | Mechanical steering | |||||
