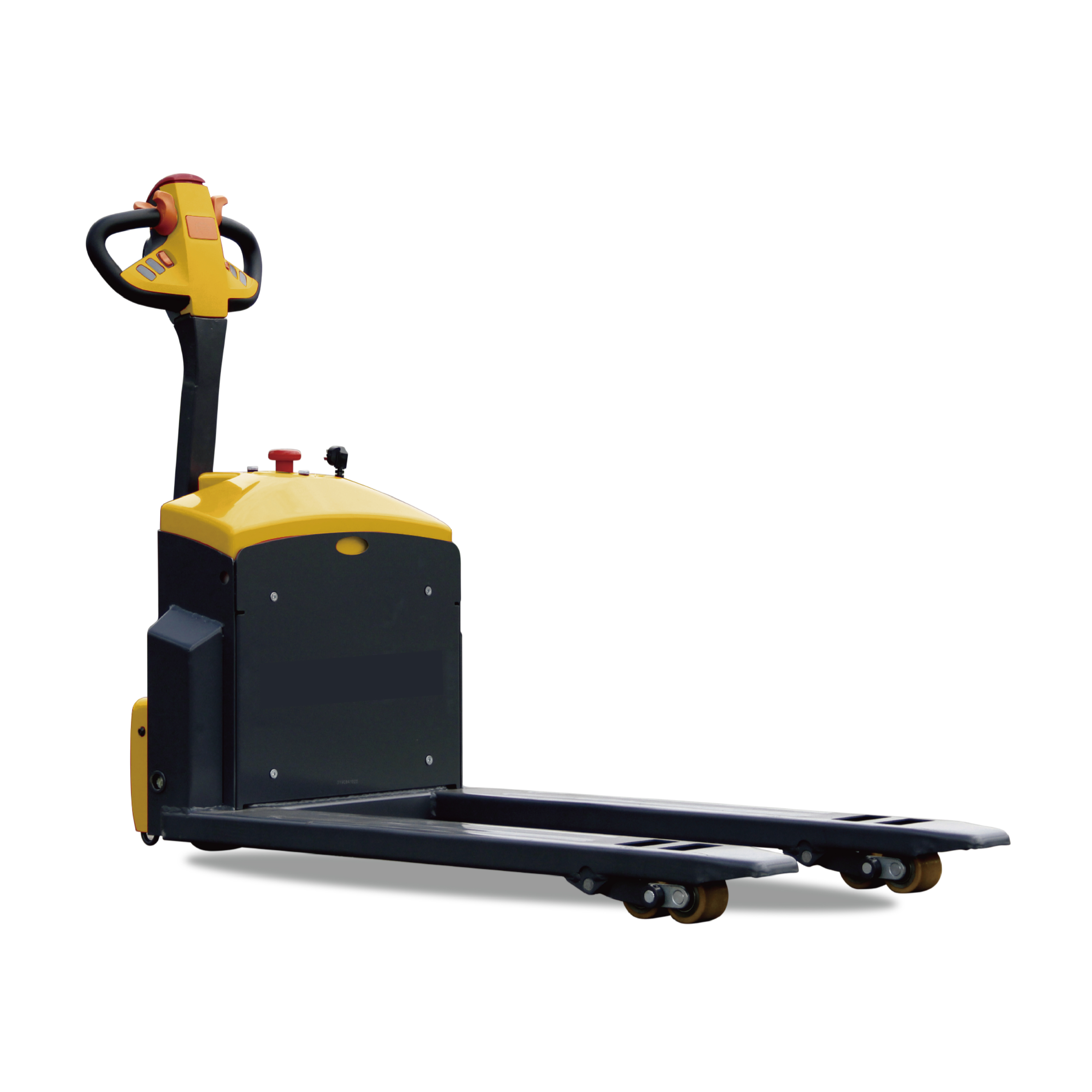

Economical Carrier

Reduced self-weight for easier and more flexible operation;
Compact vehicle dimensions and small turning radius enable handling operations in confined spaces;
Attached entry and exit rollers ensure easy entry and exit from double-sided pallets;
Battery cover is easy to remove, facilitating battery replacement for longer service life and higher efficiency;
A sturdy metal housing protects the motor and wheels while also reliably safeguarding the operator's feet to enhance safety;
Built-in charger for customer convenience;
High-efficiency DC drive unit with powerful performance, equipped with an electromagnetic braking system to enhance overall vehicle safety. Utilizes a multifunctional imported control system for simpler operation and maintenance, improving overall vehicle stability. The high-performance pump station motor provides ample power while significantly reducing energy consumption;
Improved circuit layout functionality to reduce failure rates.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
telegram sharing button
sharethis sharing button
  • CBD15-E1D2

  • Madierda

   // Details

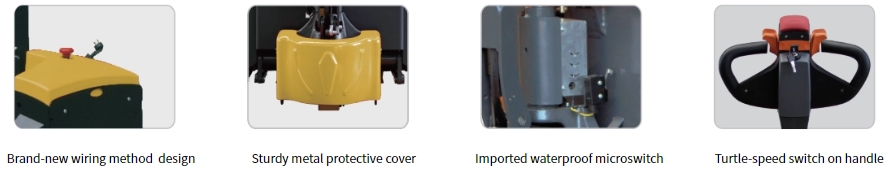

微信截图_20250811141324




 // Product Parameters

Power type


Electric

Operating mode


Walk

Load capacity

Q(kg)

1500

Wheel base

y(mm)

1262

N.W. (with battery)

kg

193/200

Drive wheel size

Фxw(mm)

Ф210x70

Bearing wheel size

фxw(mm)

Ф80x60

Lift height

h3(mm )

200

Minimum height of the forks

h13(mm )

85

Overall length

l1(mm )

1628

Carrier body length

12(mm )

478

Overall width

b1/ b2(mm )

560/685

Fork size

s/e/l(mm )

50/150/1150

Outer width of forks

b5(mm)

560/685

Aisle width:1000x1200Pallet(1200Place across the forks)

Ast(mm)

1831

Aisle width:800x1200pallet (1200Place along the forks)

Ast(mm)

1881

Turning tadius

Wa(mm)

1425

Walking speed: Full load/empty load

(km /h)

4.2/4.5

hoisting speed: Full load/empty load

(mm/s)

22/25

Descent speed:Full load/empty load

(mm/s)

38/28

Maximum gradeability: Full load/empty load

(%)

6/10

Brake type


Electromagnetic

Drive motor power

(kw)

0.75

Lifting motor power

(kw)

0.8

Battery

(V/Ah)

2x12/75(Lithium:24v/40Ah)

Battery weight (±5%)

(kg)

40

Drive control type


Dc speed control

Noise

dB (A)

67

Diversionary mode


Mechanical steering
