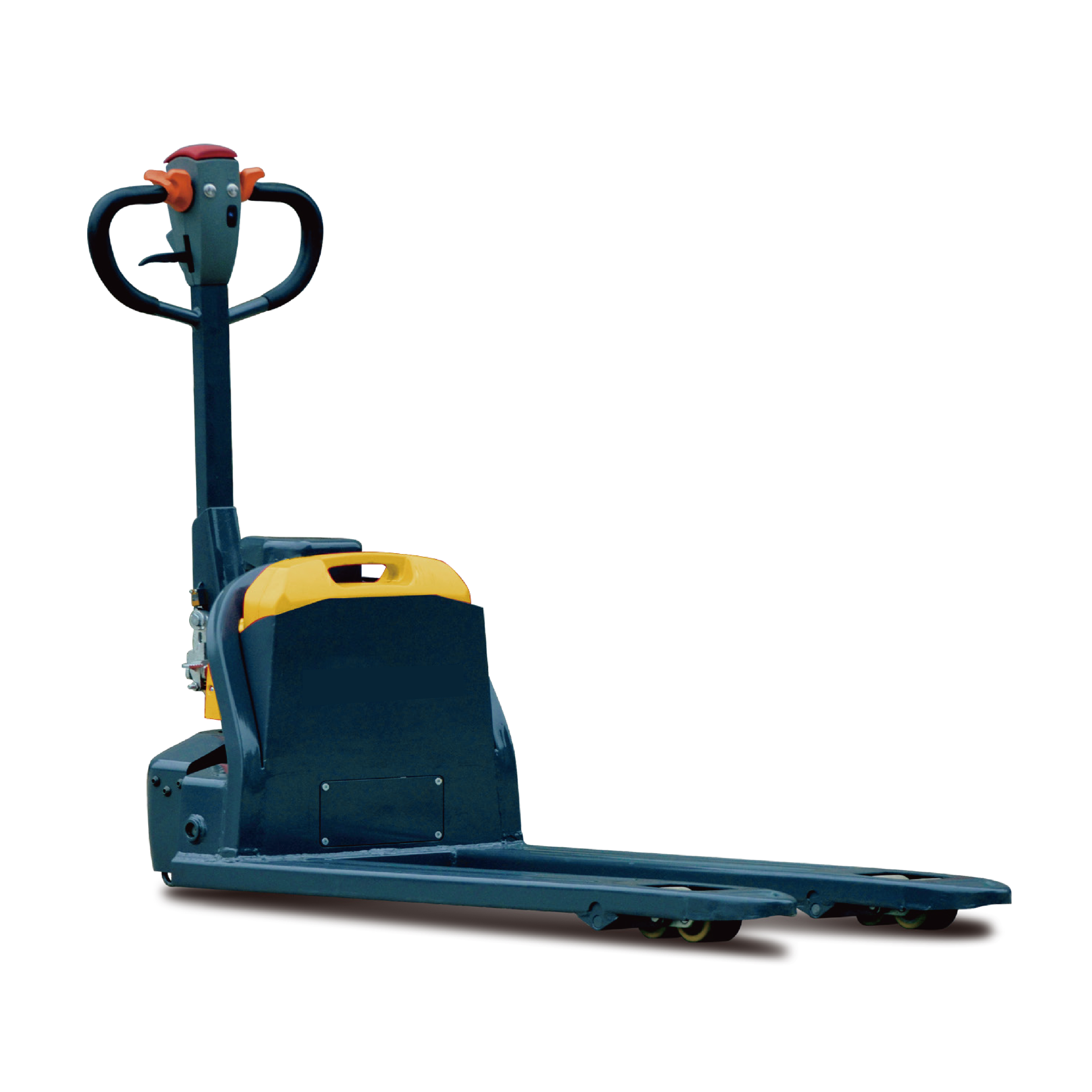

CBD15-E1D1L/CBD20-E1D1L
Madierda
// Product Parameters
Model | CBD15-E1D1L | CBD20-E1D1L | |
Power type | Electric | Electric | |
Operating mode | Walk | Walk | |
Load capacity | Q(t) | 1.5 | 2.0 |
Wheel base | y(mm) | 1243 | 1243 |
N.W. (without battery) | kg | 142 | 146 |
Drive wheel size | Фxw(mm) | Φ210 x70 | Φ210 x70 |
Bearing wheel size | фxw(mm) | Φ80 x60 | Φ80 x60 |
Balance wheel size | фxw(mm ) | Φ50 x30 | Φ50 x30 |
Lift height | h3(mm ) | 200 | 200 |
Minimum height of the forks | h13(mm ) | 85 | 85 |
Overall length | l1(mm ) | 1603 | 1603 |
Carrier body length | I2(mm) | 453 | 453 |
| Overall width | b1/ b2(mm ) | 550 /685 | 550 /685 |
Fork size | s/e/l(mm ) | 50/150 /1150 | 50/150 /1150 |
Fork outer width | b5(mm) | 550 /685 | 550 /685 |
Aisle width:1000x1200 Pallet (1200 Place across the forks) | Ast(mm) | 1804 | 1804 |
Aisle width:800x1200pallet (1200 Place along the forks) | Ast(mm) | 1854 | 1854 |
Turning tadius | Wa(mm) | 1398 | 1398 |
Walking speed: Full load/empty load | (km /h) | 4.2/4.5 | 4.2/4.5 |
Maximum gradeability: Full load/empty load | (%) | 5/10 | 5/10 |
Brake type | Electromagnetic | Electromagnetic | |
Drive motor power | (kw ) | 0.75 | 0.75 |
Lifting motor power | (kw ) | 0.8 | 0.8 |
Battery | (V/Ah ) | 24/20 20 /40 24/60 | 48/20 48/30 |
Battery weight (±5%) | (kg) | 6 10 .2 13 .2 | 10.2 13.2 |
Drive control type | Dc speed control | Dc speed control | |
Noise | dB (A) | ≤70 | ≤70 |
Diversionary mode | Mechanical steering | Mechanical steering |
