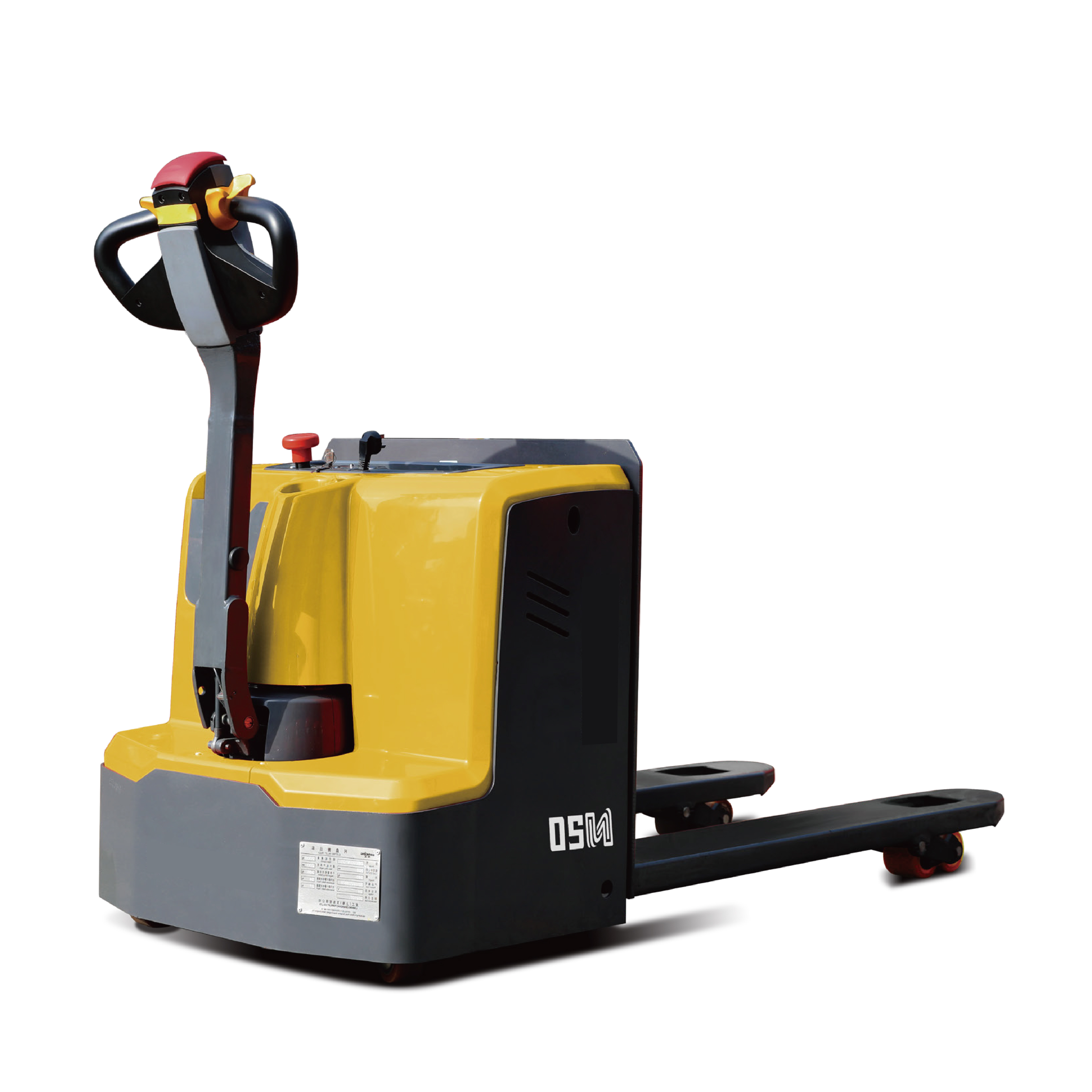

CBD20-N1D1/N1D2
Madierda
// Product Parameters
Model | CBD20-N1D1 | CBD20-N1D2 | |
Power type | Electric | ||
Operating mode | Walk | ||
Load capacity | Q(t) | 2.0 | |
Wheel base | y(mm ) | 1324 | |
N.W. (with battery) | kg | 340 | |
Wheel load front/rear: empty load | kg | 80/260 | |
Wheel load front/rear: full load | kg | 1520/860 | |
Drive wheel size | Фxw(mm) | Ф210x70 | |
Bearing wheel size | фxw(mm) | Ф80x70 | |
Balance wheel size | фxw(mm ) | Ф100x40 | |
Lift height | h3(mm ) | 200 | |
Minimum height of the forks | h13(mm ) | 85 | |
Overall length | l1(mm ) | 1700 | |
Overall width | b1/ b2(mm ) | 700 | |
Fork size | s/e/l(mm ) | 56/60/1150 | |
Fork outer width | b5(mm) | 560/680 | |
Aisle width:1000x1200 Pallet (1200Place across the forks) | Ast(mm) | 1900 | |
Aisle width:800x1200pallet (1200Place along the forks) | Ast(mm) | 1960 | |
Turning tadius | Wa(mm) | 1475 | |
Walking speed: Full load/empty load | (km /h) | 4.2/4.5 | |
Hoisting speed: Full load/empty load | (mm/s) | 36/44 | |
Descent speed: Full load/empty load | (mm/s) | 47/36 | |
Maximum gradeability: Full load/empty load | (%) | 6/15 | 5/8 |
Brake type | Electromagnetic | ||
Drive motor power | (kw ) | 0.75 | |
Lifting motor power | (kw ) | 0.8 | |
Battery | (V/Ah ) | 2x12/100 | |
Battery weight (±5%) | kg | 54 | |
Drive control type | AC speed control | DC speed control | |
Noise | dB (A) | ≤70 | |
Diversionary mode | Mechanical steering | ||
